• 12 Years of Agricultural Excellence.

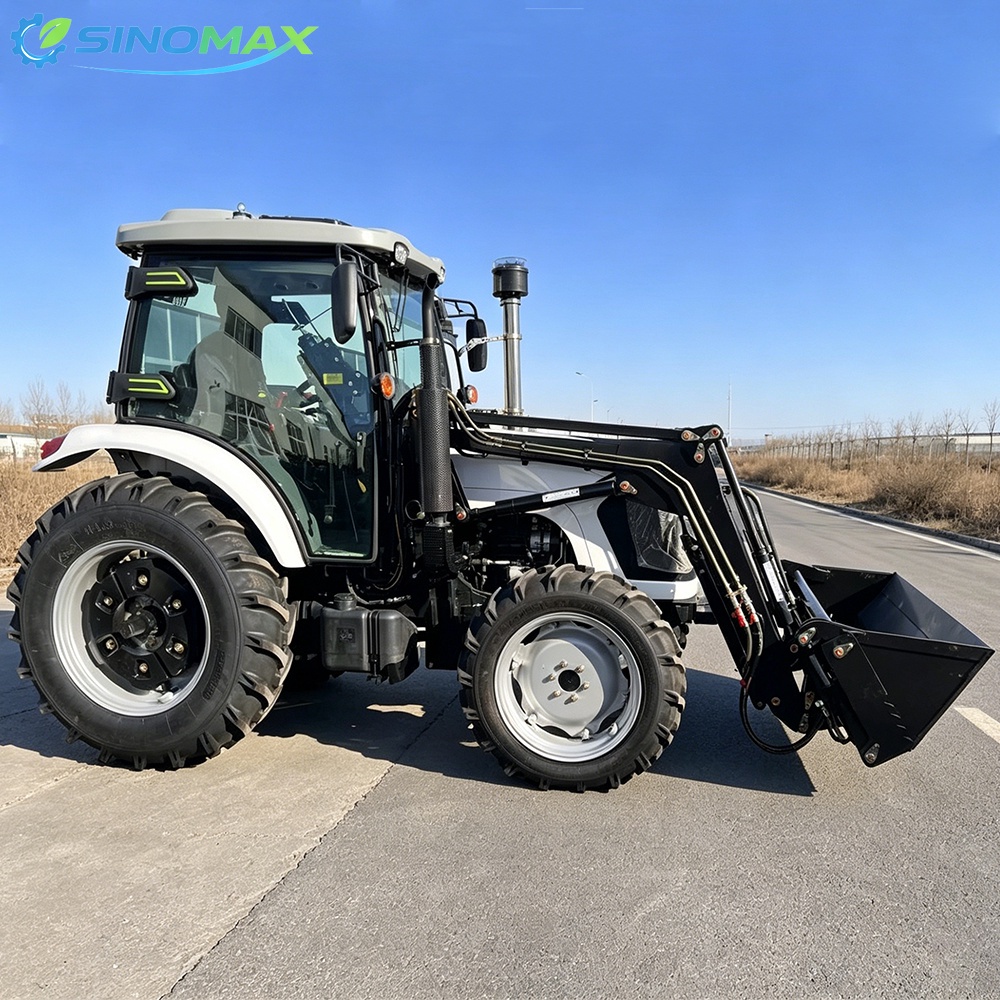

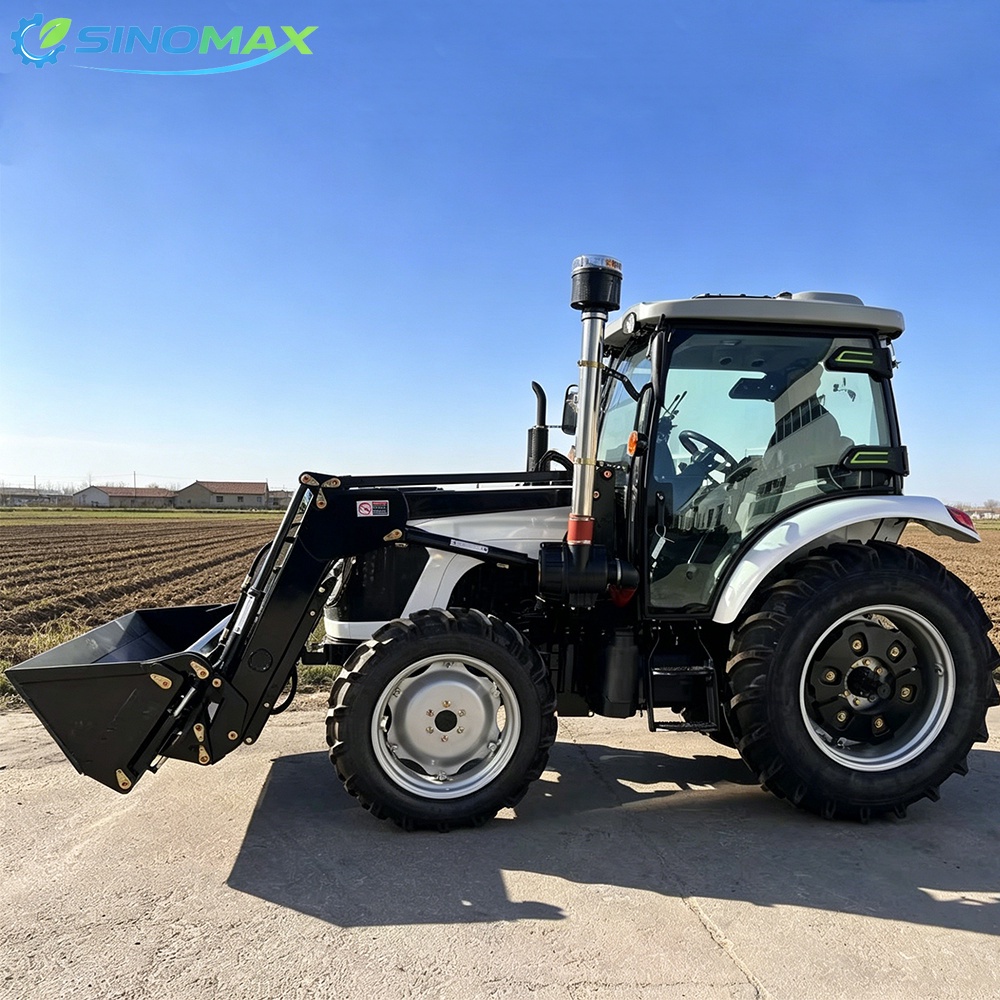

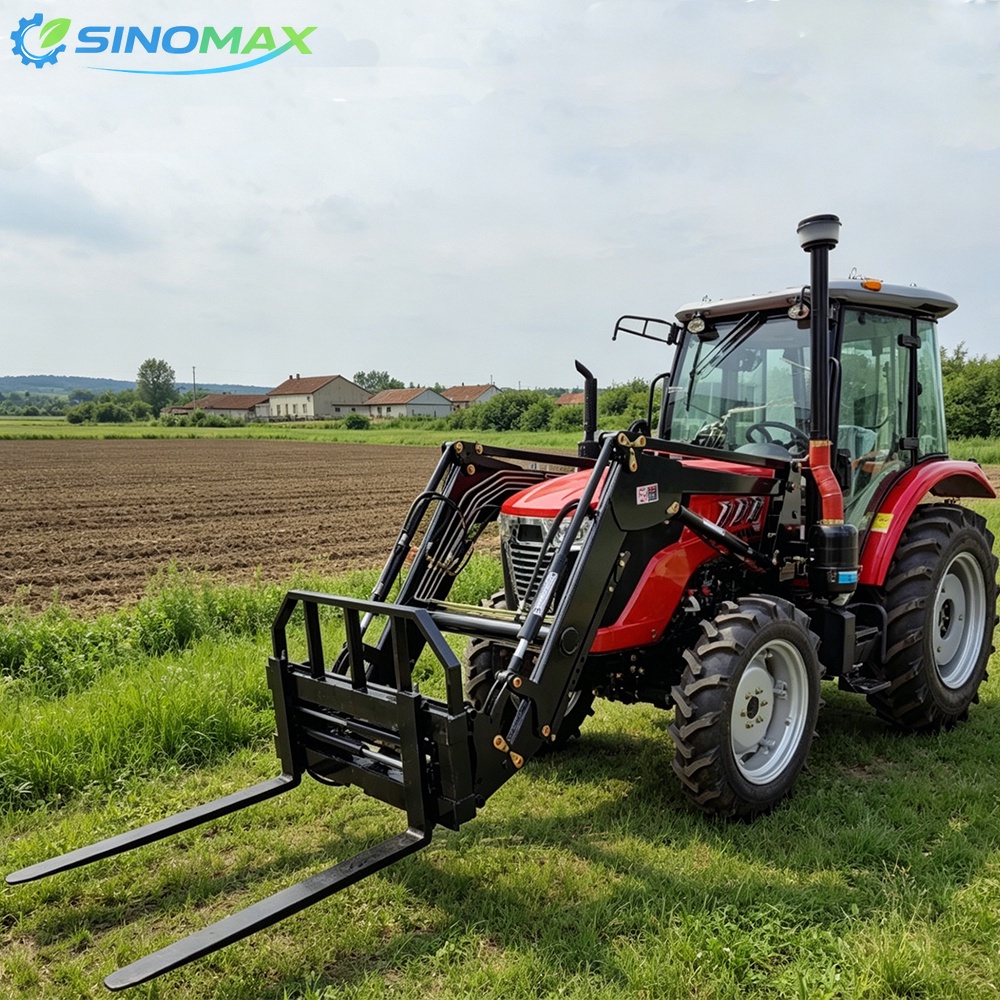

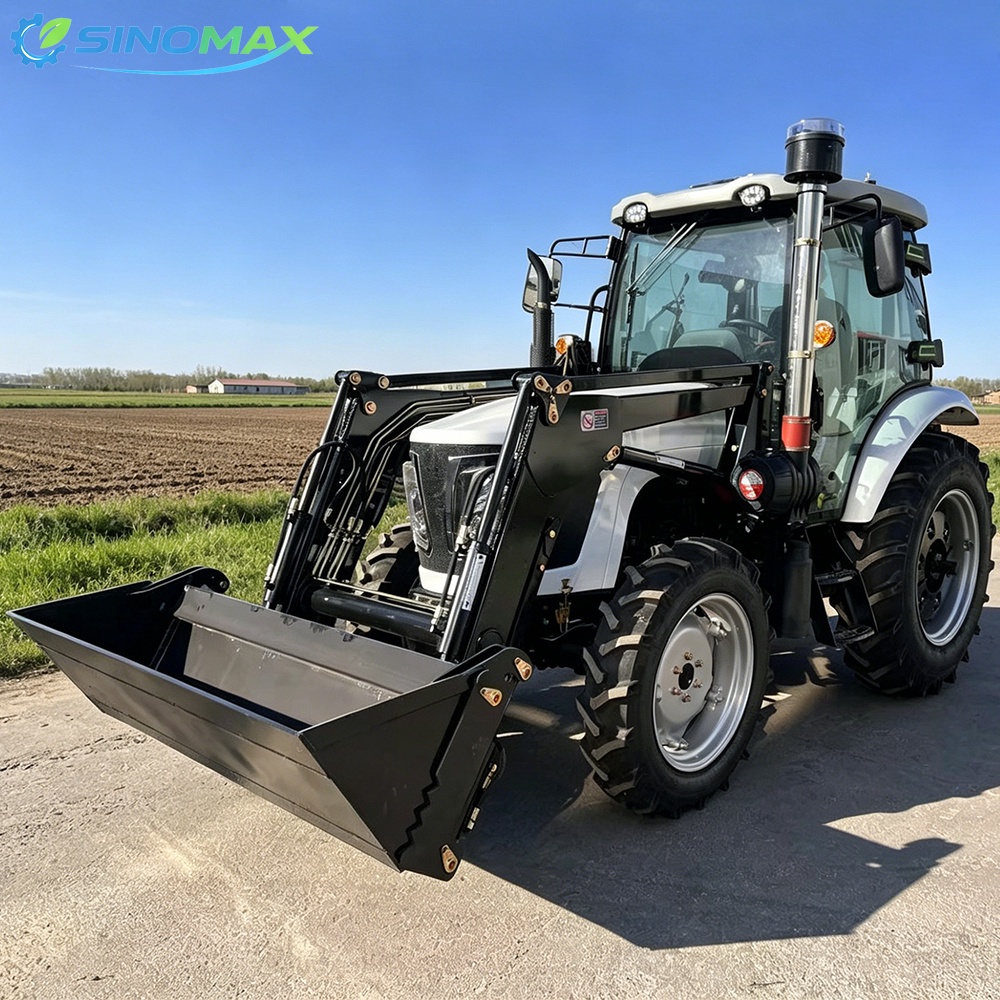

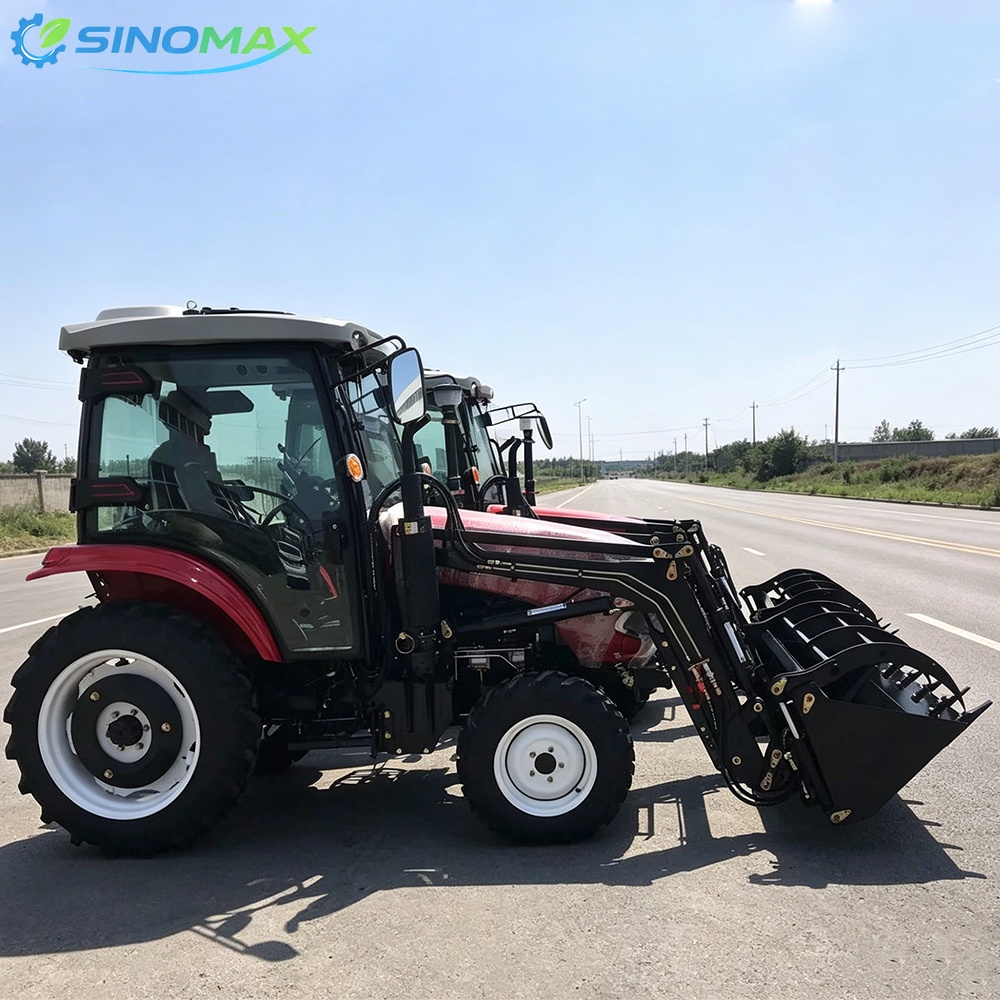

Front Loader

Front Loader

· Simple structure, easy operation, cheap price.
· There are various models. Adapting to large, medium and small tractors.
· For fast-moving design between the bucket and the lifting arm, the bucket can be easily removed. Our factory provides various types of buckets for you to choose from to meet different production needs.
Message
Technical Specifications

LOADER MODEL

TZ-3

TZ-4

TZ-8

TZ-10

TZ-12

DIMENSION

(include tractor)

4100x1600x 1580 mm

4400x1600x

1880mm

4900x1739x

2494 mm

5010x2000x

2904mm

5350x2000x

3000mm

MAX. DUMP HEIGHT

2525 mm

2850 mm

3500 mm

3650 mm

3800 mm

DUMP DISTANCE

900 mm

900 mm

1180 mm

1180 mm

1200mm

ROLLBACK ANGLE

120°

SCRAP DEPTH

100 mm

150 mm

160 mm

160 mm

160 mm

BUCKET VOLUME

0.20m³

0.27m³

0.43m³

0.60m³

0.65m³

LIFT CAPACITY

400~600kg

500~700kg

600~800kg

800~1000kg

1000~1200kg

MATCHED POWER

25-50hp

40-60hp

70-100hp

90-120hp

120-150hp



Features Description

前装载机应用场景图

Customization Options

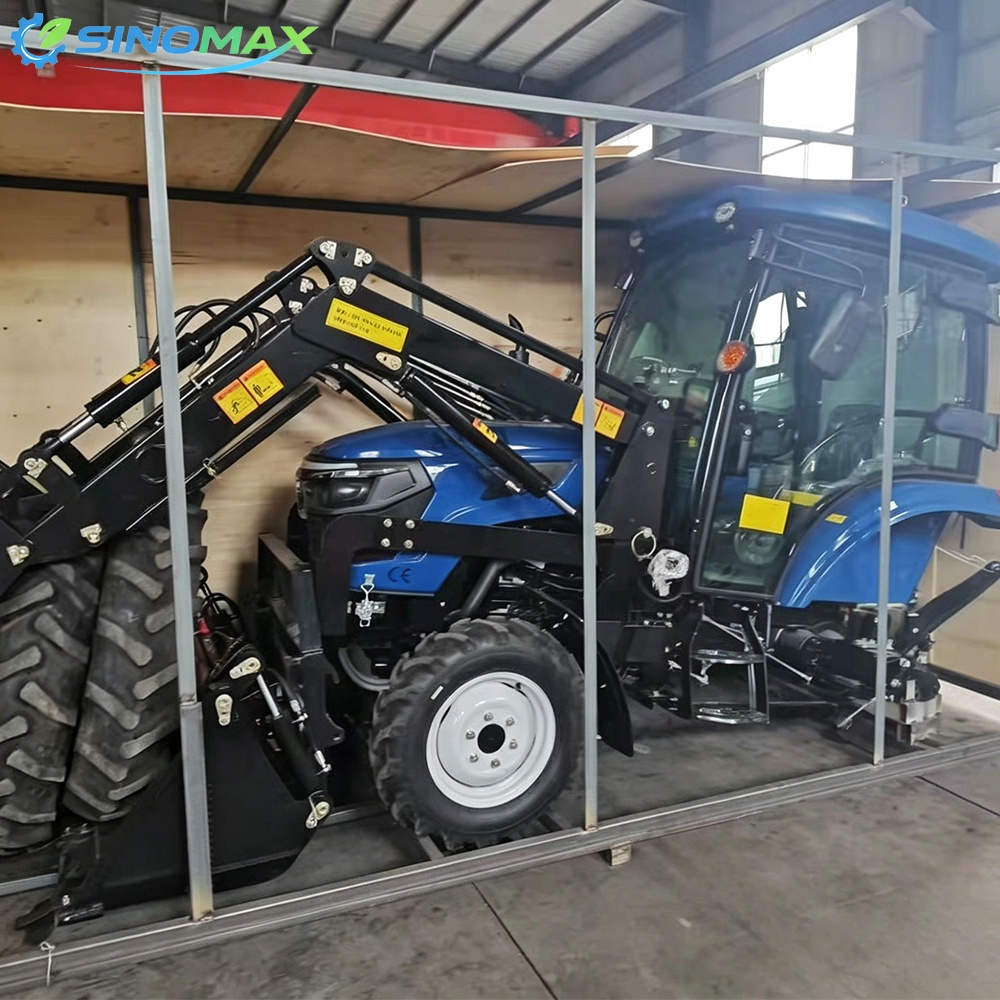

Packaging and Shipping
FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
