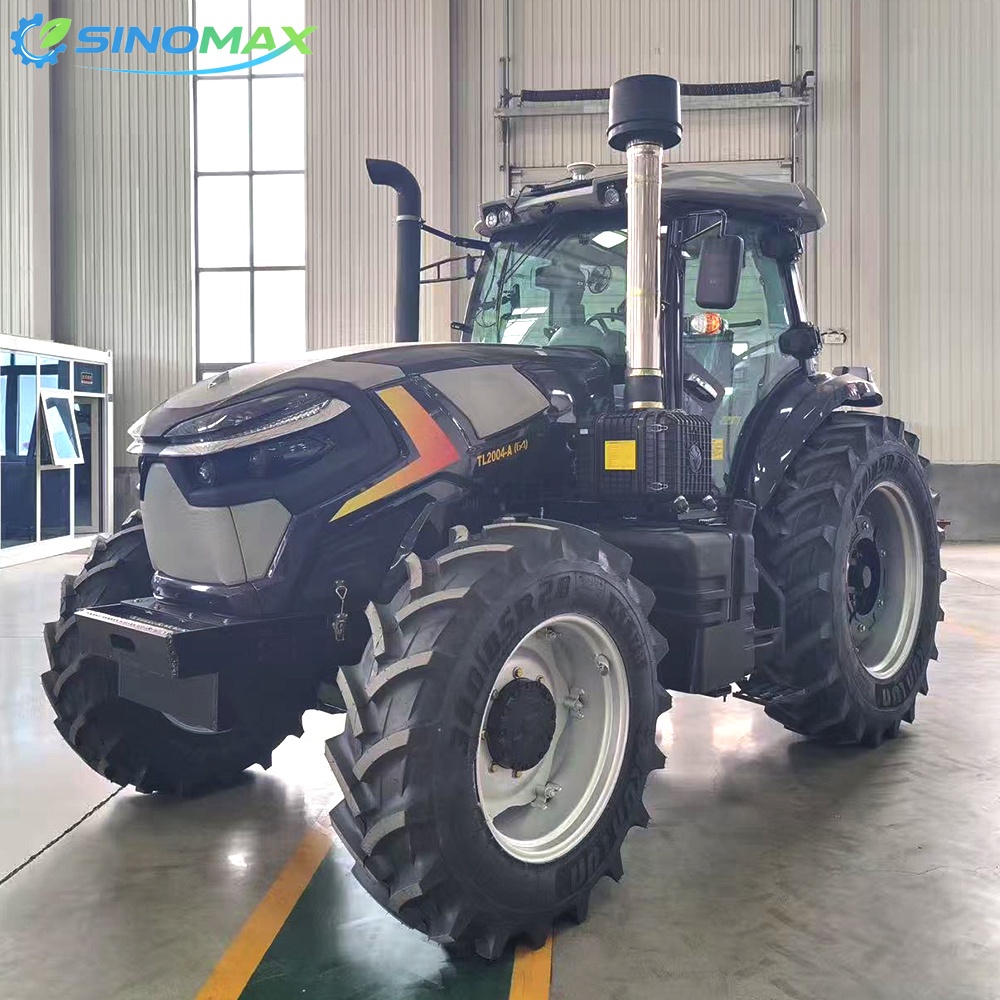

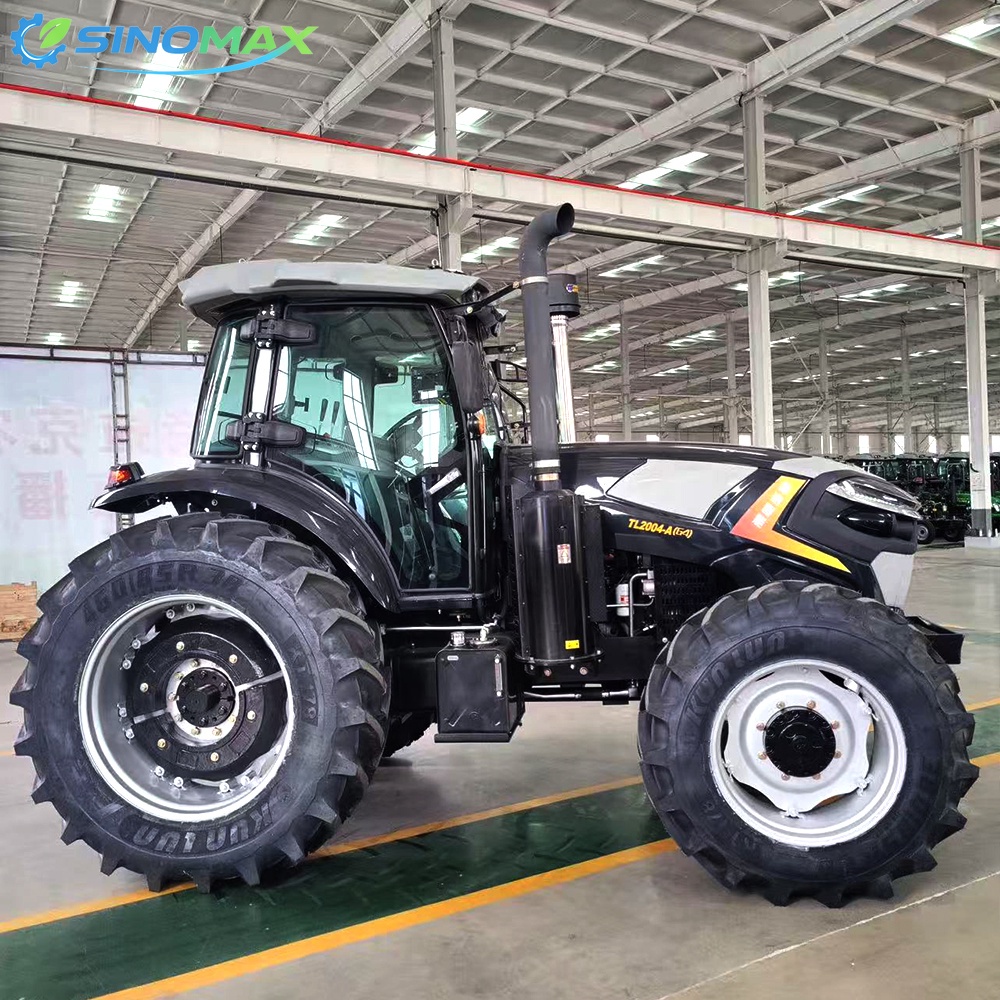

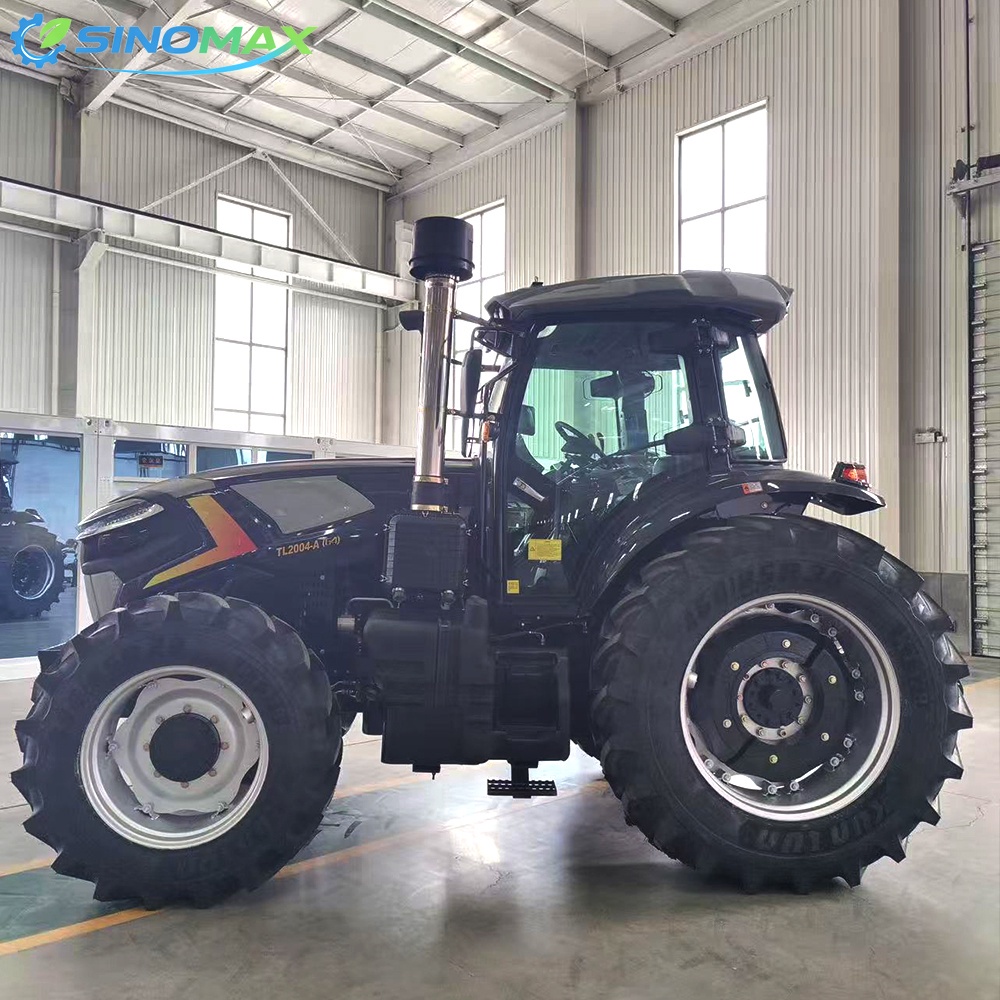

TG Chassis 220 HP Tractor

TG Chassis 220 HP Tractor

· Install the well-known Shang Chai Six Cylinders
Diesel Engine, which has abundant power and large
torque reserve.
· Can install Carraro front axle, LUK clutch, high
body strength.

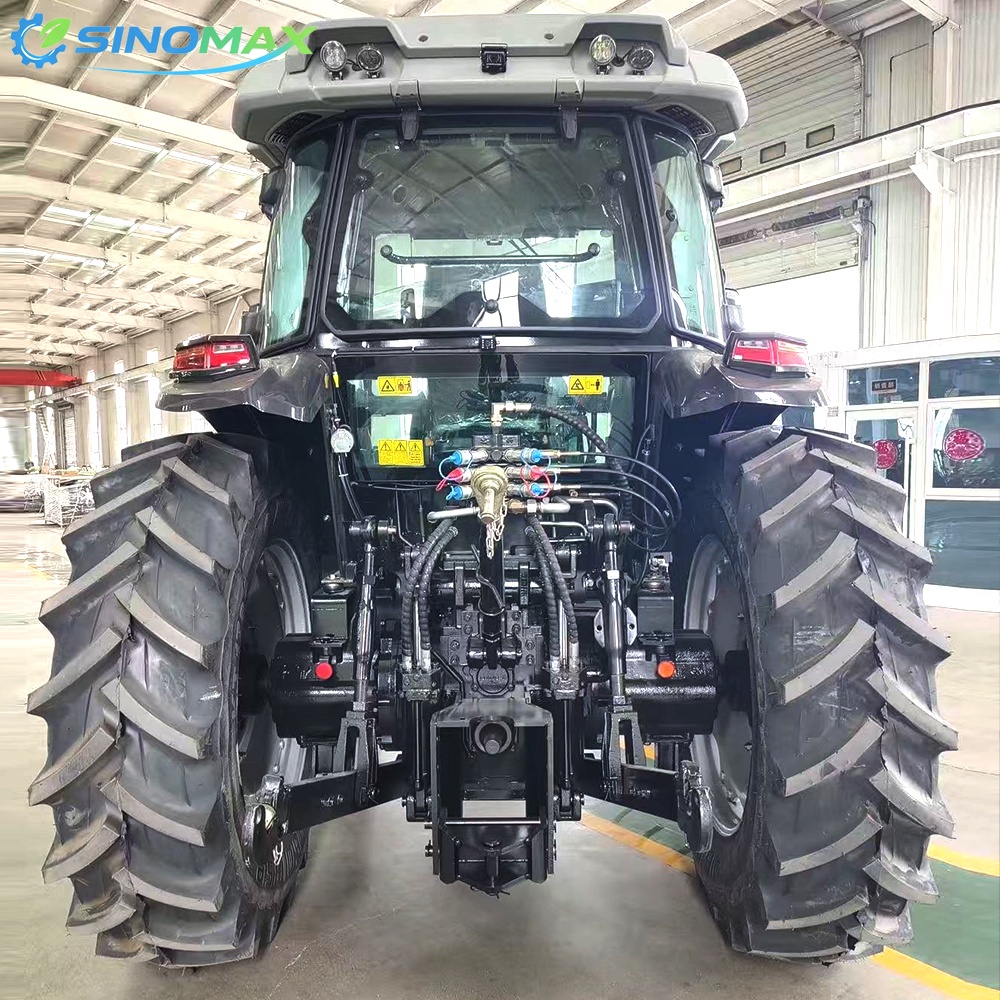

· Hydraulic electric control system can be installed
for hydraulic output valve and three point hitch.
Operation is more convenient.
· 16F+16R gear layout, the clutch is equipped with
Hydraulic Power Assist, install MAXAM brand radial
tire. Lots of gears, great traction.
Message
Technical Specifications

TRACTOR MODEL

TG2004

TG2204

TG2404

ENGINE BRAND

Shangchai

Shangchai

Shangchai

ENGINE MODEL

SC7H200G3

SC7H220G3

SC7H240G3

ENGINE POWER

147 kw

162 kw

177 kw

ENGINE RATED SPEED

2200 rpm

2200 rpm

2200 rpm

WEIGHT

8300 kgs

8500 kgs

8800 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

16F+16R

CLUTCH TYPE

Double Action

DRIVING SPEED

3.41-32.48 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

450 mm

STEERING TYPE

Hydraulic Power

WHEEL BASE

2830 mm

WHEEL TREAD

1900-2100 mm

DIMENSION

5545x2740x3200 mm

TIRE SIZE

16.9-28/20.8-38 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear,  Ⅲ Category

OPTIONAL

Air Brake System

Weichai Brand Diesel Engine

420/85R28/520/85R38 Radial Tire

540/65R30/650/65R42 Radial Tire

Electrical Control Hydraulic System

Front PTO and Front Suspension



Features Description

1

2

3

4

Customization Options

5

6

7

8

9

Packaging and Shipping

10

FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
