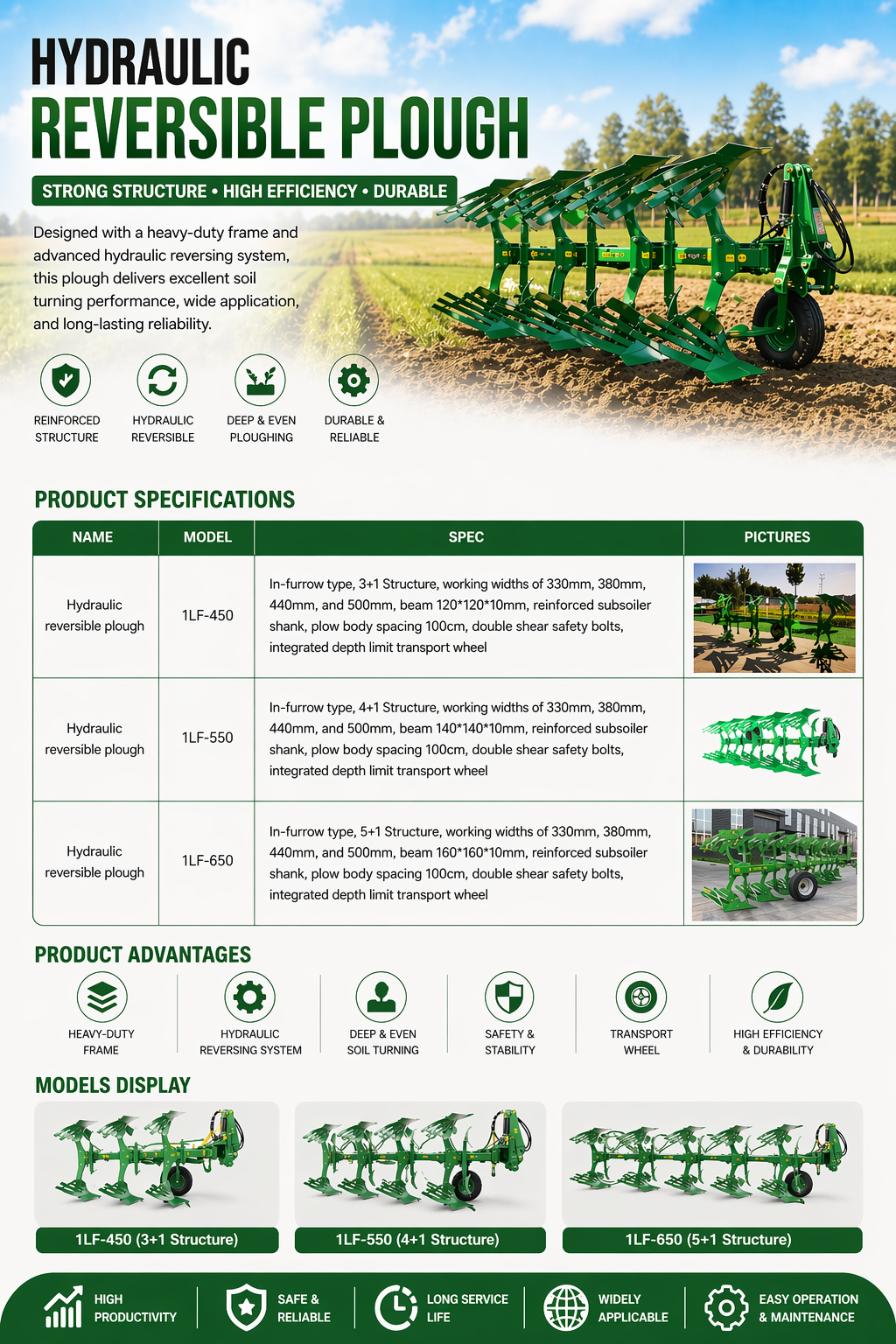

Technical Specifications
PARAMETER1LF-4501LF-5501LF-650
TypeIn-furrow typeIn-furrow typeIn-furrow type
Structure3+1 Structure4+1 Structure5+1 Structure
Working Widths330mm, 380mm, 440mm, and 500mm330mm, 380mm, 440mm, and 500mm330mm, 380mm, 440mm, and 500mm
Beam Specification12012010mm14014010mm16016010mm
Subsoiler ShankReinforced subsoiler shankReinforced subsoiler shankReinforced subsoiler shank
Plow Body Spacing100cm100cm100cm
Safety DeviceDouble shear safety boltsDouble shear safety boltsDouble shear safety bolts
Integrated FunctionIntegrated depth limit/transport wheelIntegrated depth limit/transport wheelIntegrated depth limit/transport wheel
Matching tractor power (kW)147~191.1169.1~250.2191.1~250.2



Features Description


Customization Options

5

7

2

Packaging and Shipping

翻转篱打包发货图

FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
