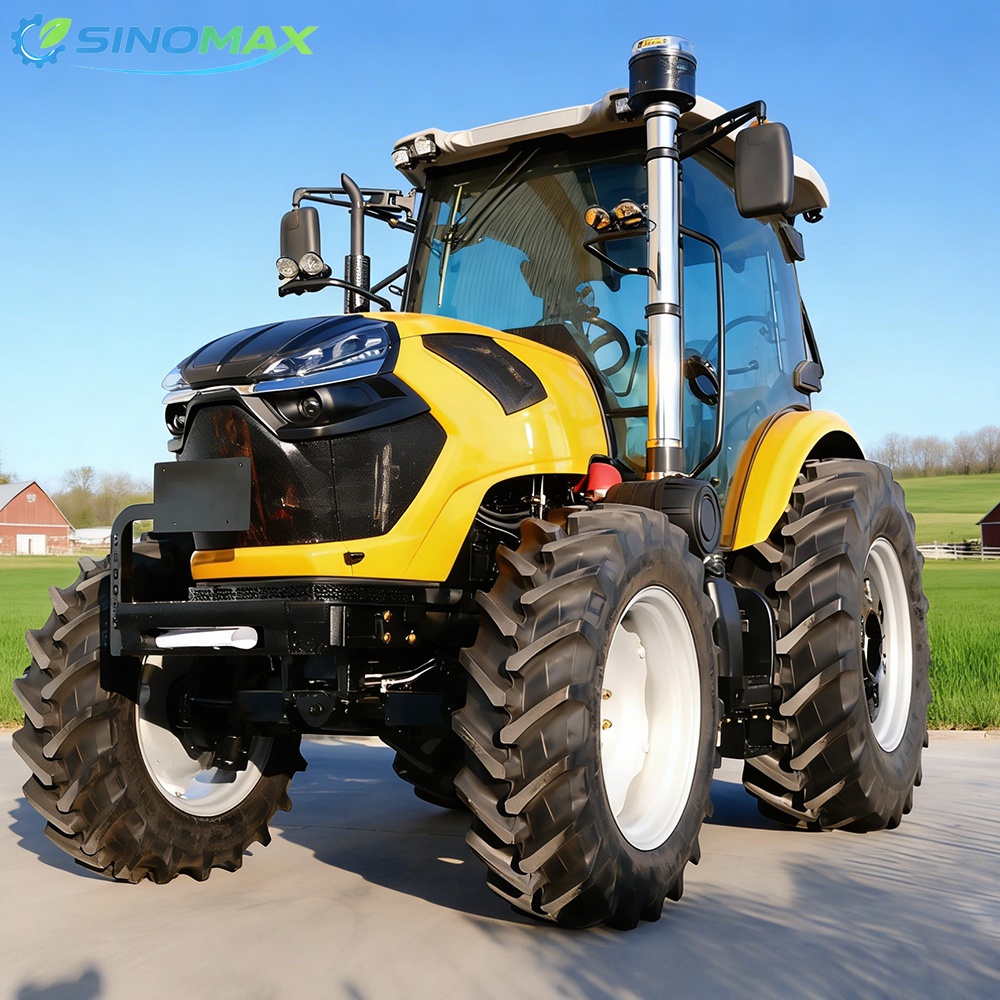

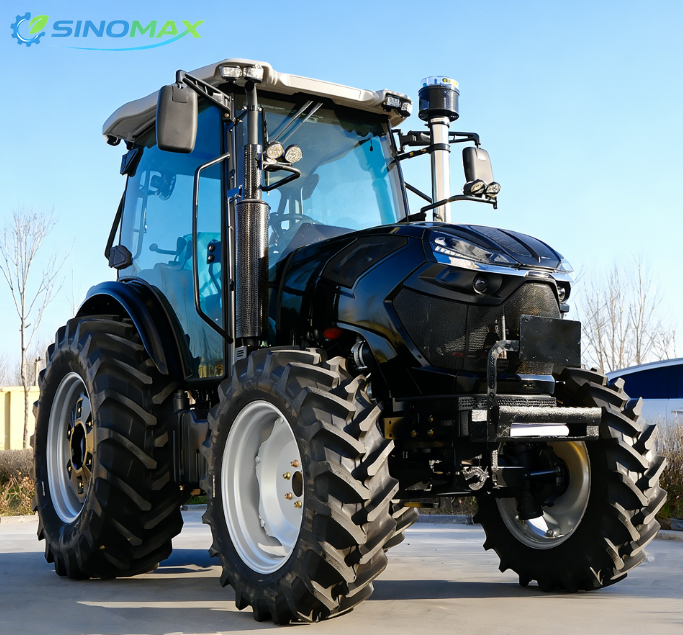

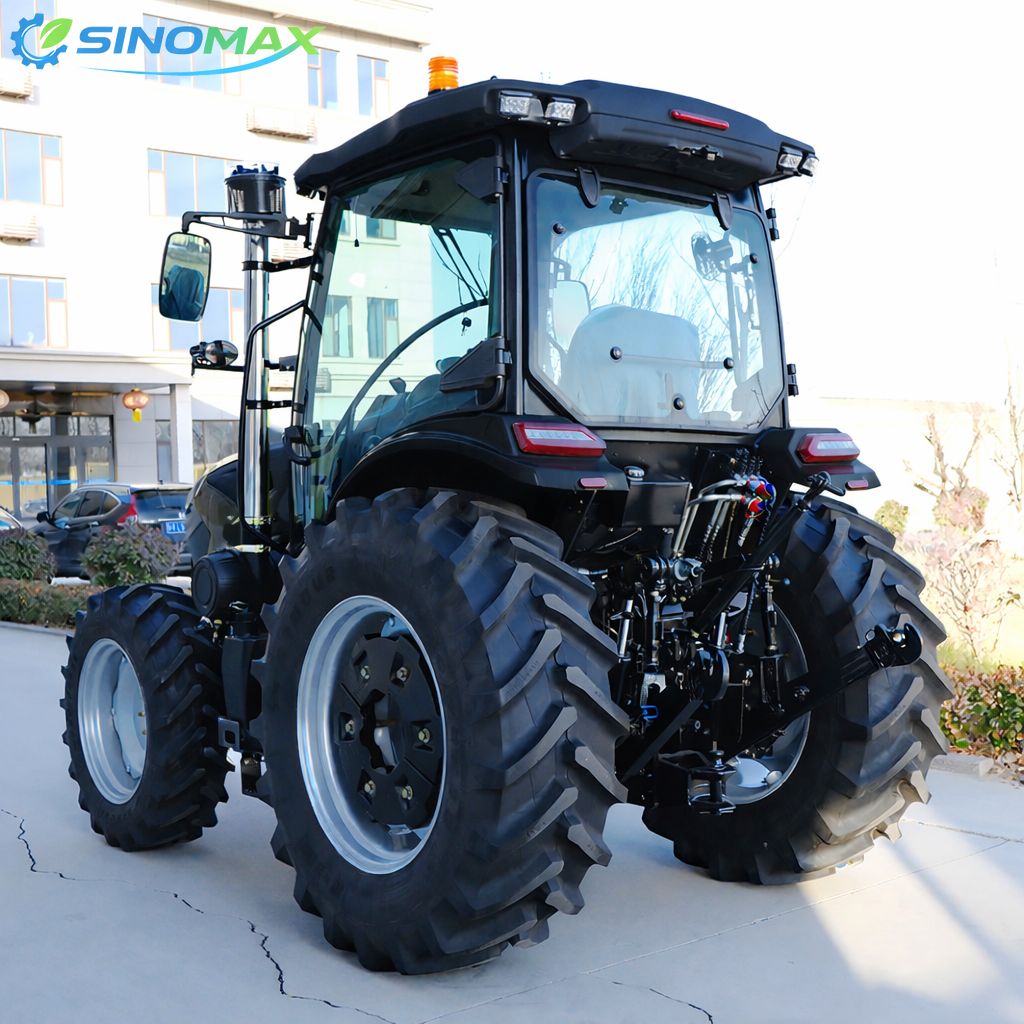

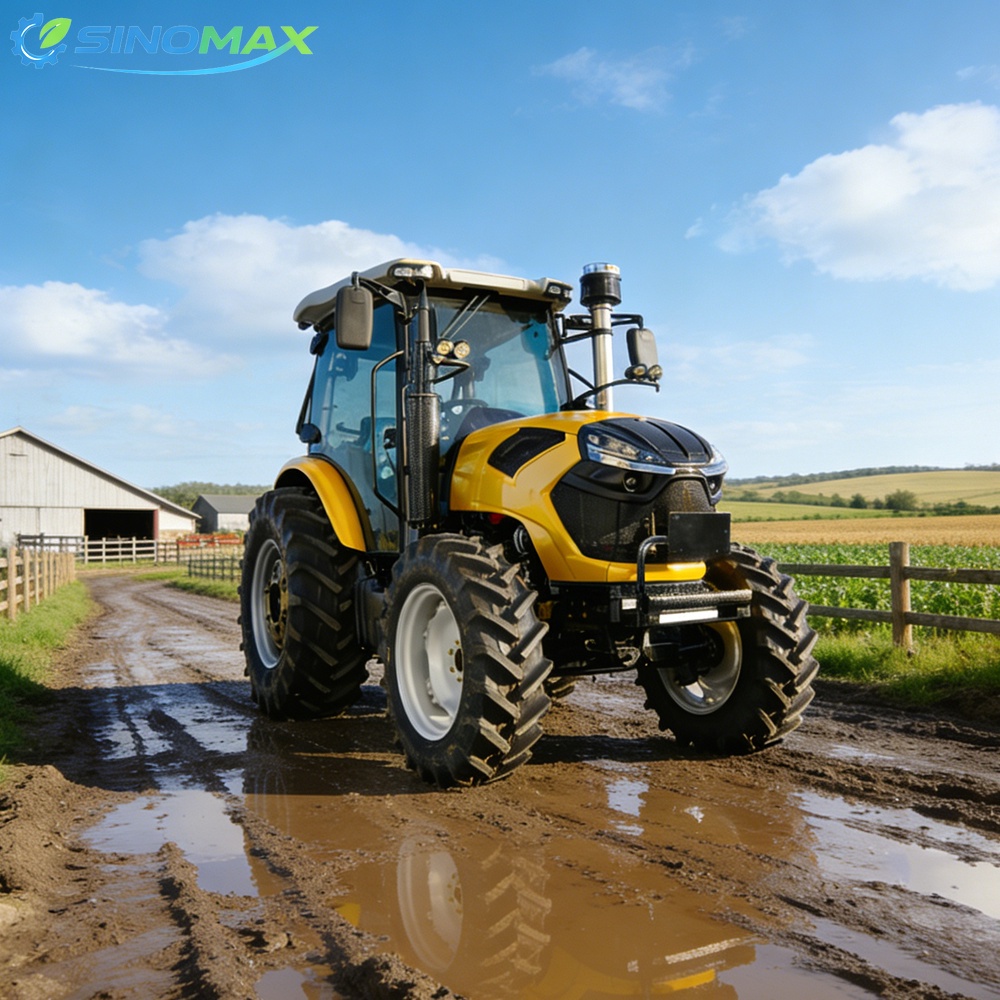

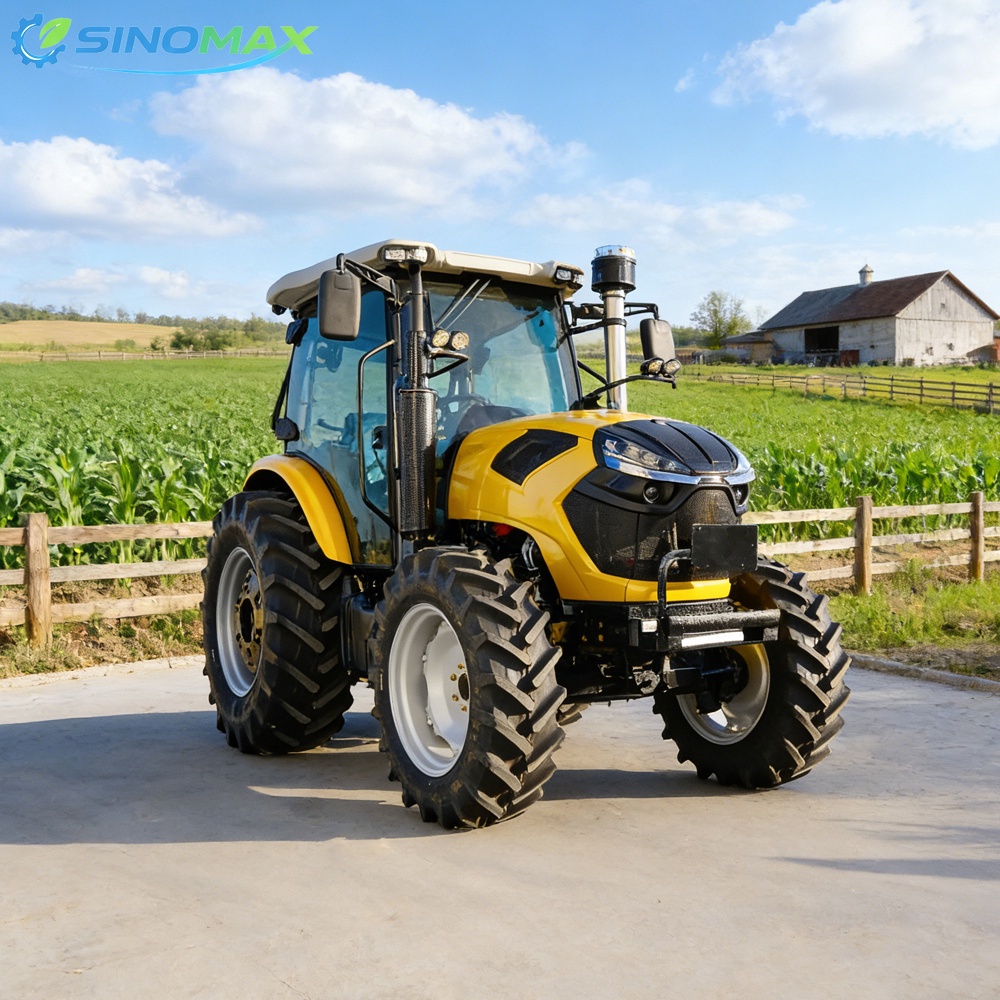

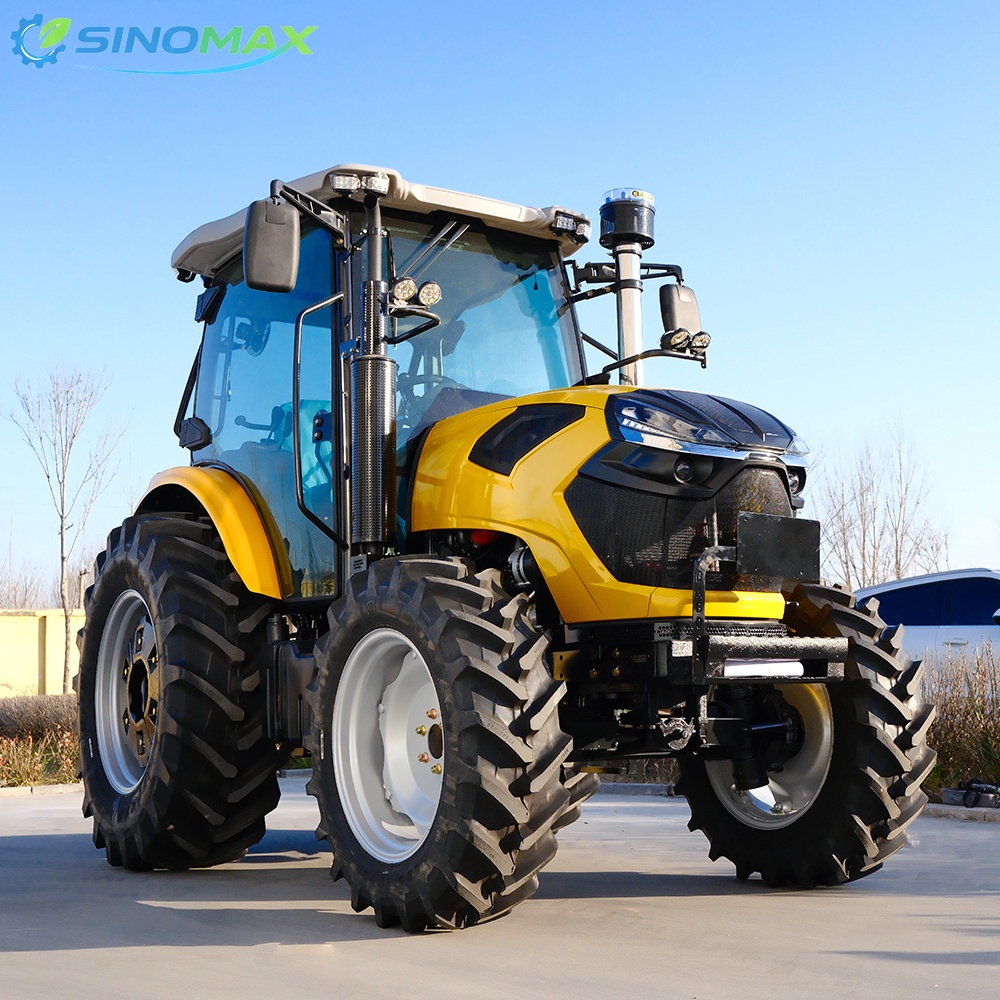

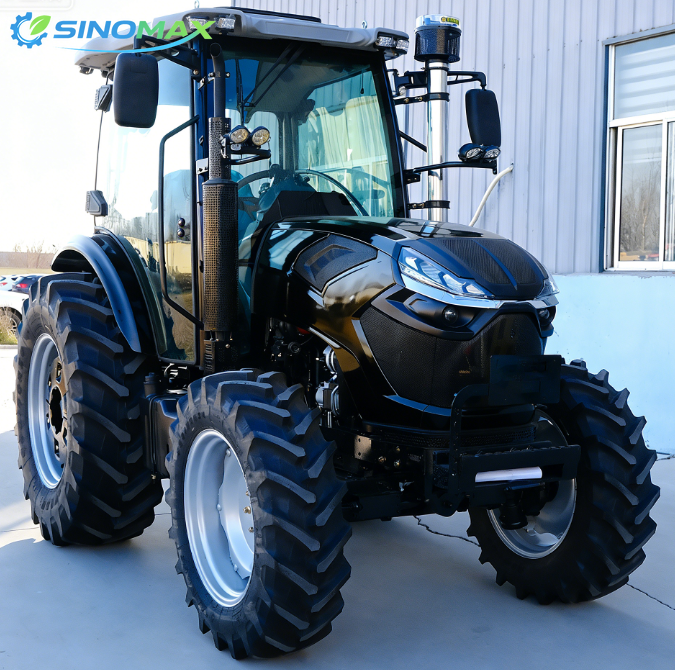

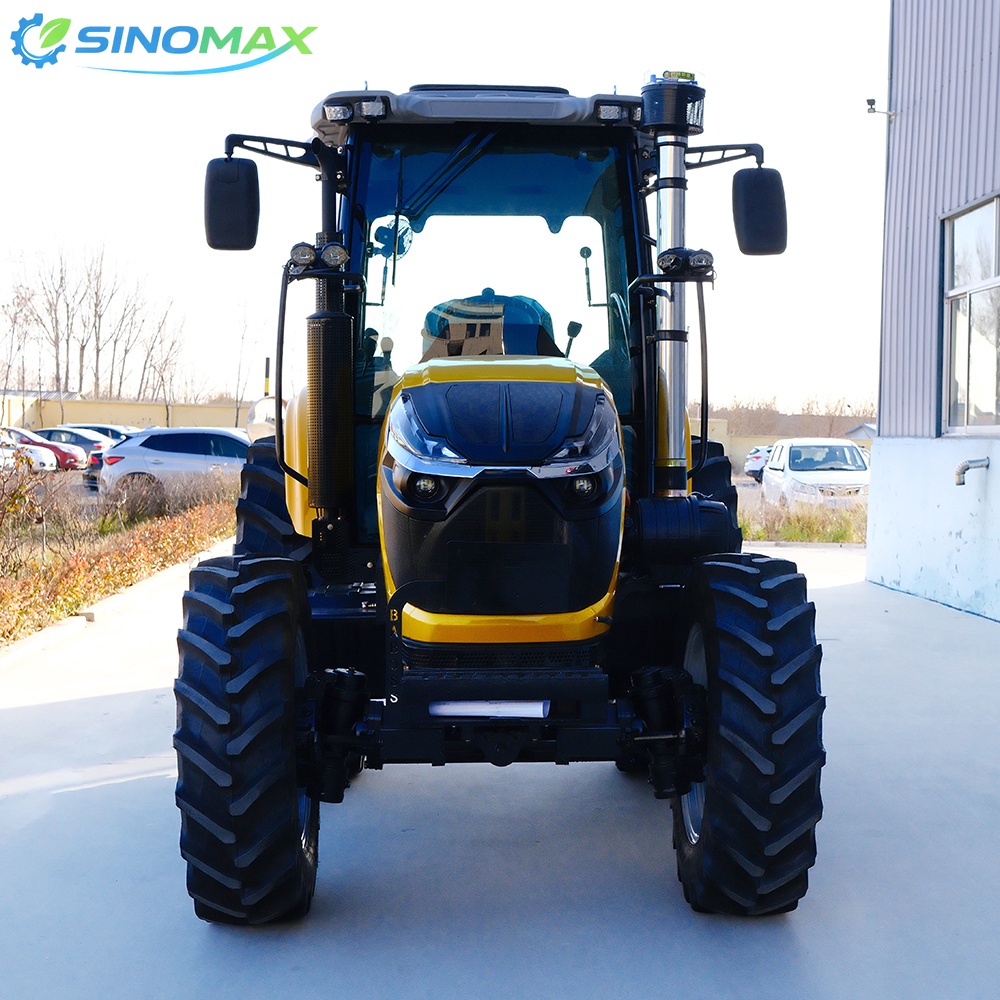

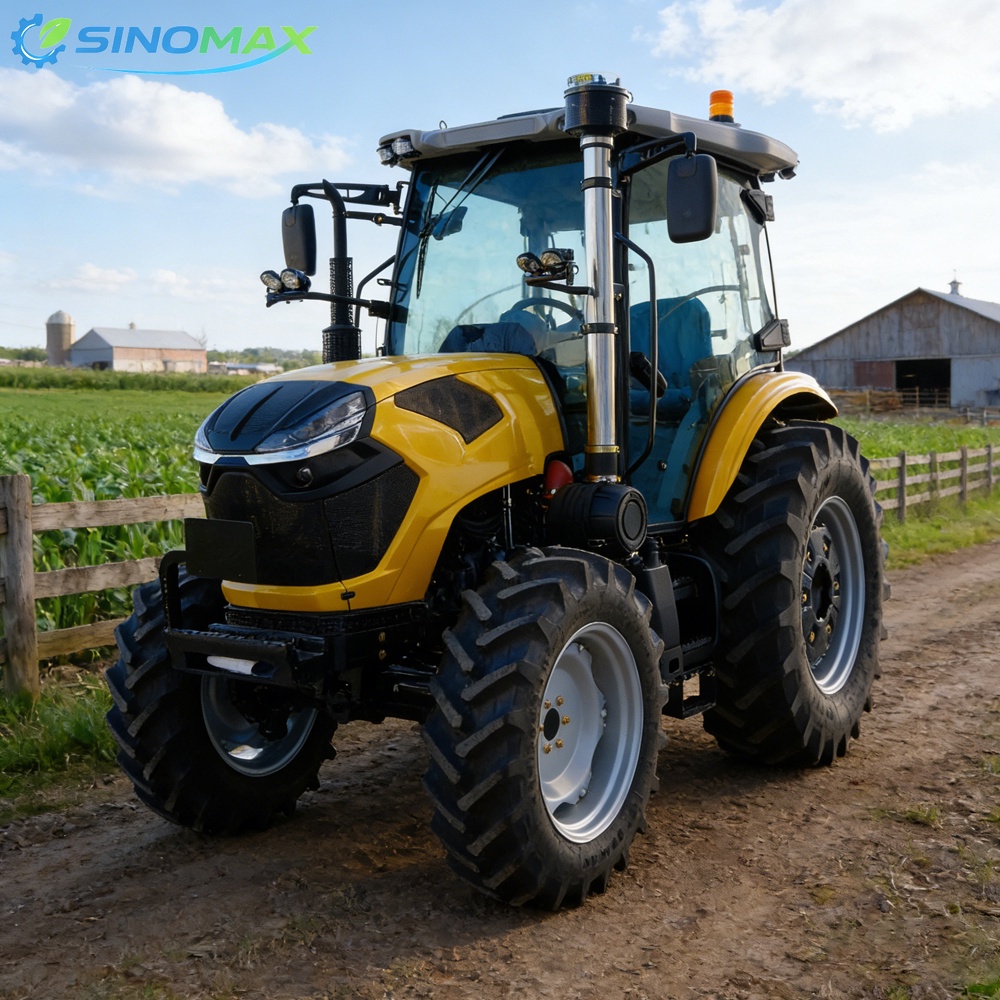

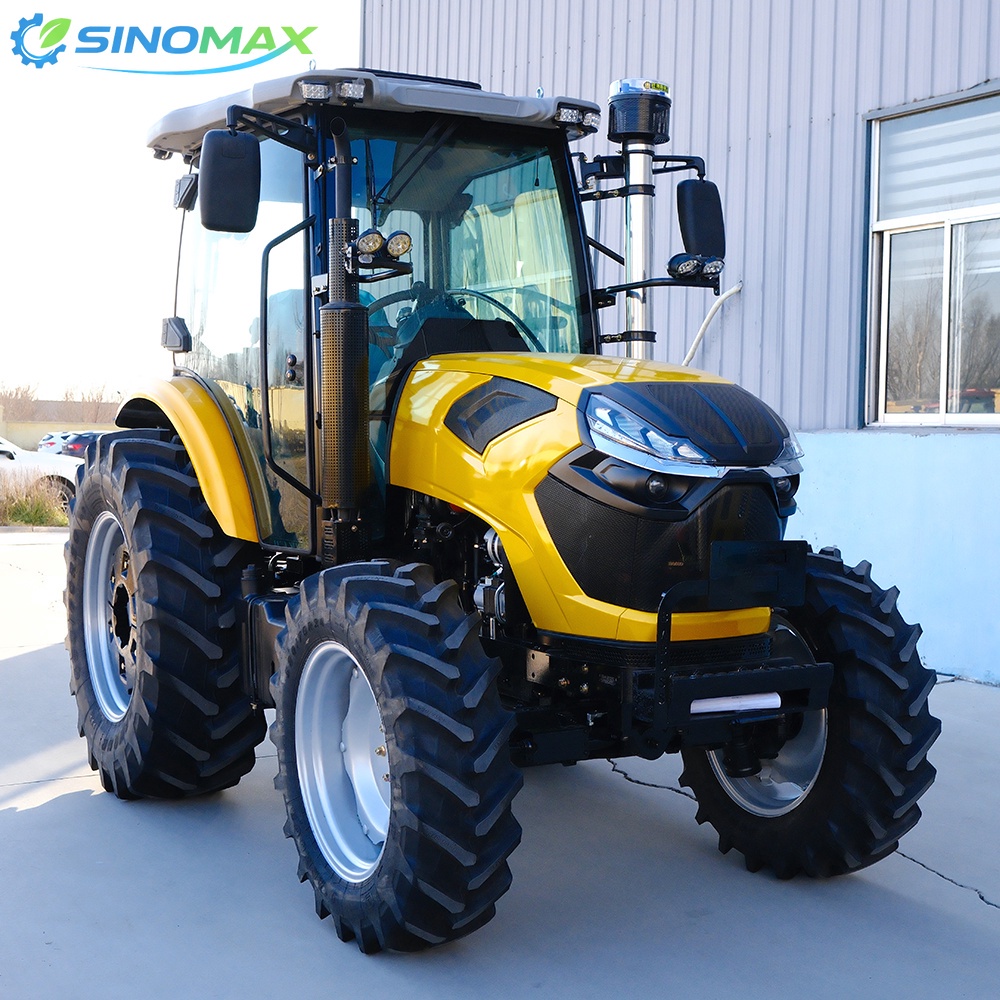

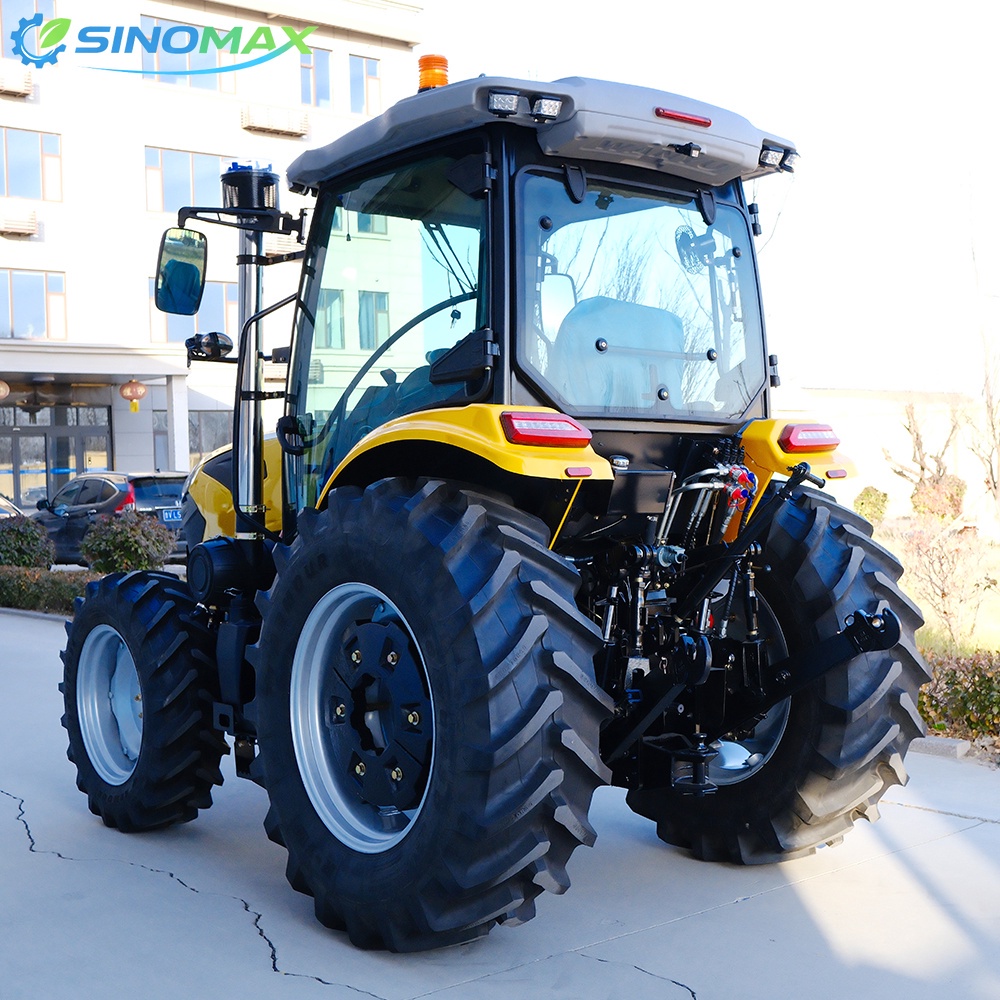

TB Chassis 100 HP Tractor with Cab

TB Chassis 100 HP Tractor with Cab

· The internal structures of the Front Drive Axle, Gearbox and Rear Drive Axle are all strengthened. So this type tractor can be connected to medium-sized agricultural equipment for operation.
· Shuttle Shift 12+12 works together with Double Stage Clutch. So the tractor has convenient shifting and reasonable speed matching.

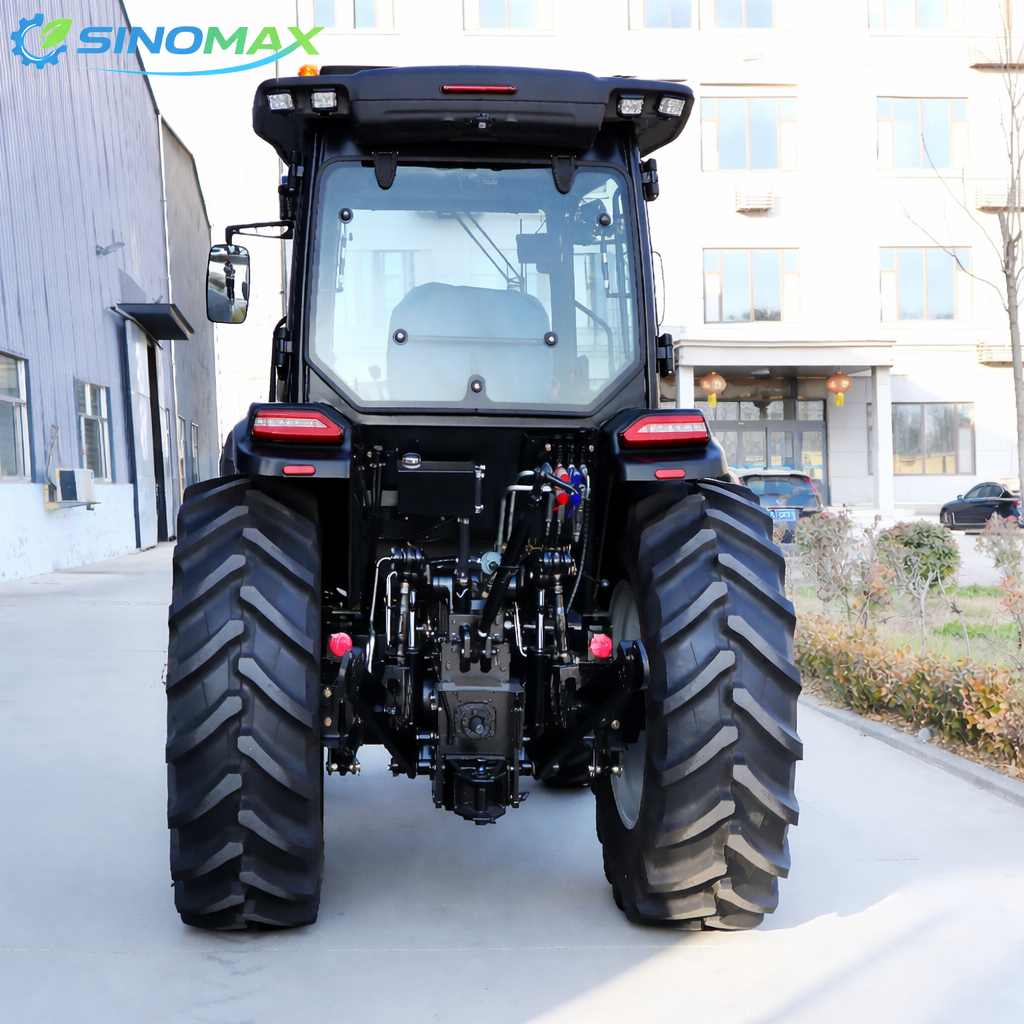

· Hydraulic Lift Cylinder and Three Point Suspension are all upgraded, so lifting force is large.
Message
Technical Specifications

TRACTOR MODEL

TB704

TB804

TB904

TE Series 40-70Hp Tractor With Roll Bar and Roof1004

ENGINE BRAND

Quanchai

ENGINE MODEL

QC4108T70

QC4108T80

4C6-90U32

4C6-100C35

ENGINE POWER

51.5 kw

59 kw

66.2 kw

73.5 kw

ENGINE RATED SPEED

2400 rpm

2400 rpm

2400 rpm

2400 rpm

WEIGHT

2920 kgs

3020 kgs

3120 kgs

3220 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

12F+12R

CLUTCH TYPE

Double Action

DRIVING SPEED

2.46-32.73 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

380 mm

STEERING TYPE

Hydraulic Power

WHEEL TREAD

1300-1400 mm

WHEEL BASE

2050 mm

DIMENSION

4050x1830x2850 mm

TIRE SIZE

8.3-24/11-32 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, Ⅱ Category

OPTIONAL

Front & Rear Ballast

Yangdong brand engine

Air Brake System

9.5-24/14.9-30 Inch Tire, 280/85R20/380/85R30 Radial Tire,

12.4-24/18.4-30 Inch Tire

PACKAGE

Whole Machine/One 40 HQ in 3 Units.


Features Description

拖拉机详情页_01

拖拉机详情页_02

拖拉机详情页_03

Customization Options

拖拉机详情页_04

拖拉机详情页_05

拖拉机详情页_06

拖拉机详情页_07

拖拉机详情页_08

Packaging and Shipping

拖拉机详情页_09

拖拉机详情2_01

拖拉机详情2_02

FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
