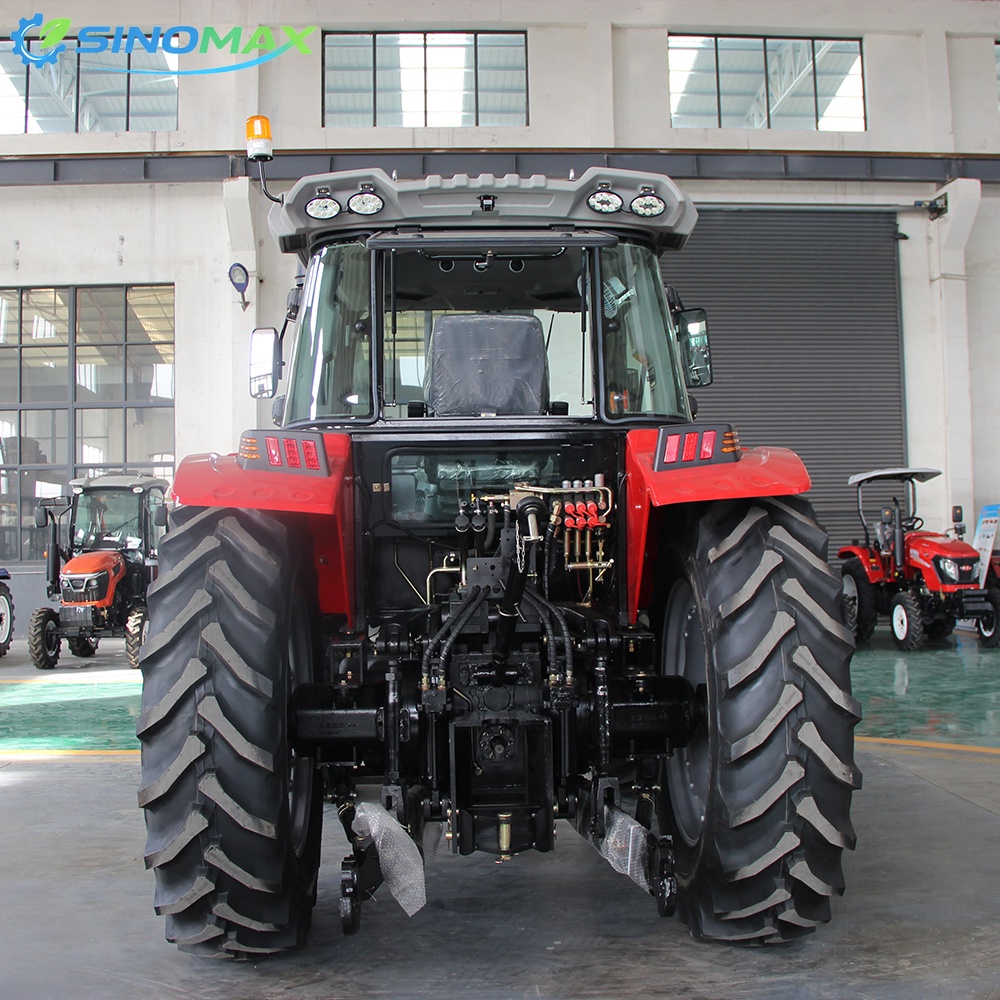

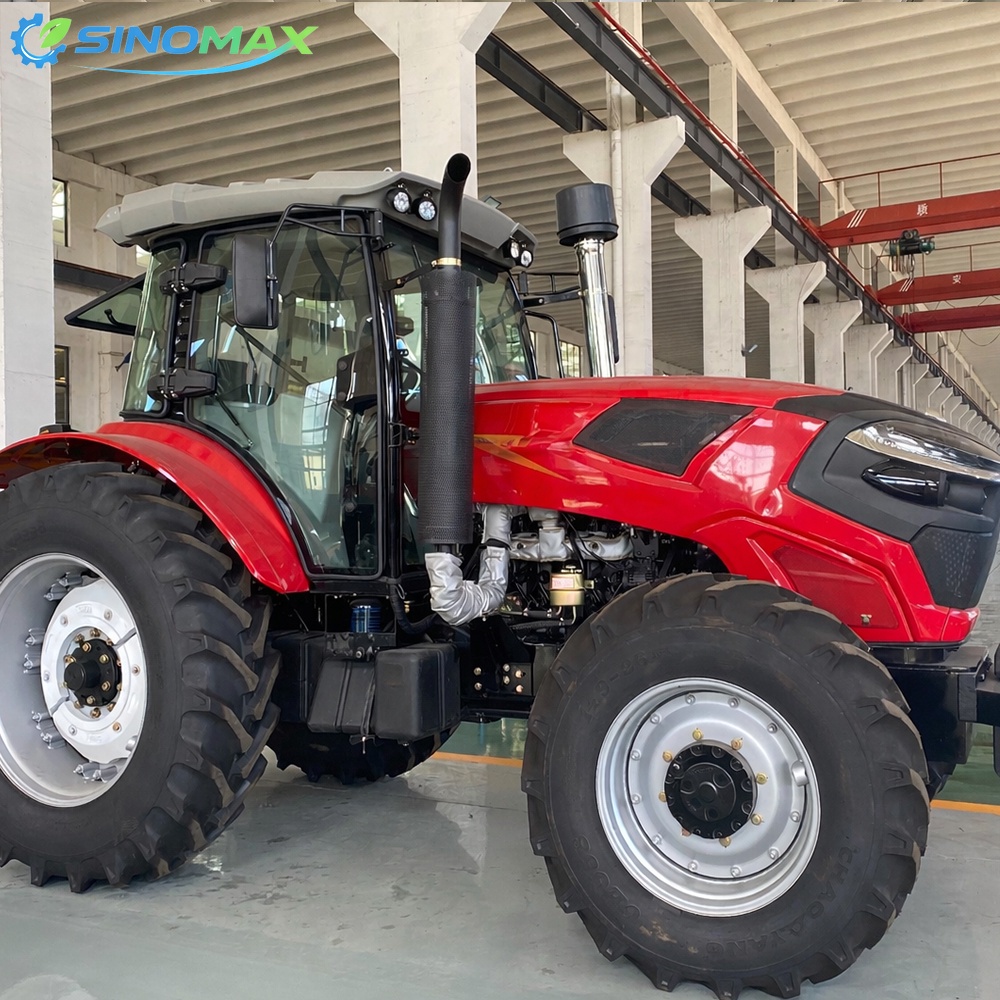

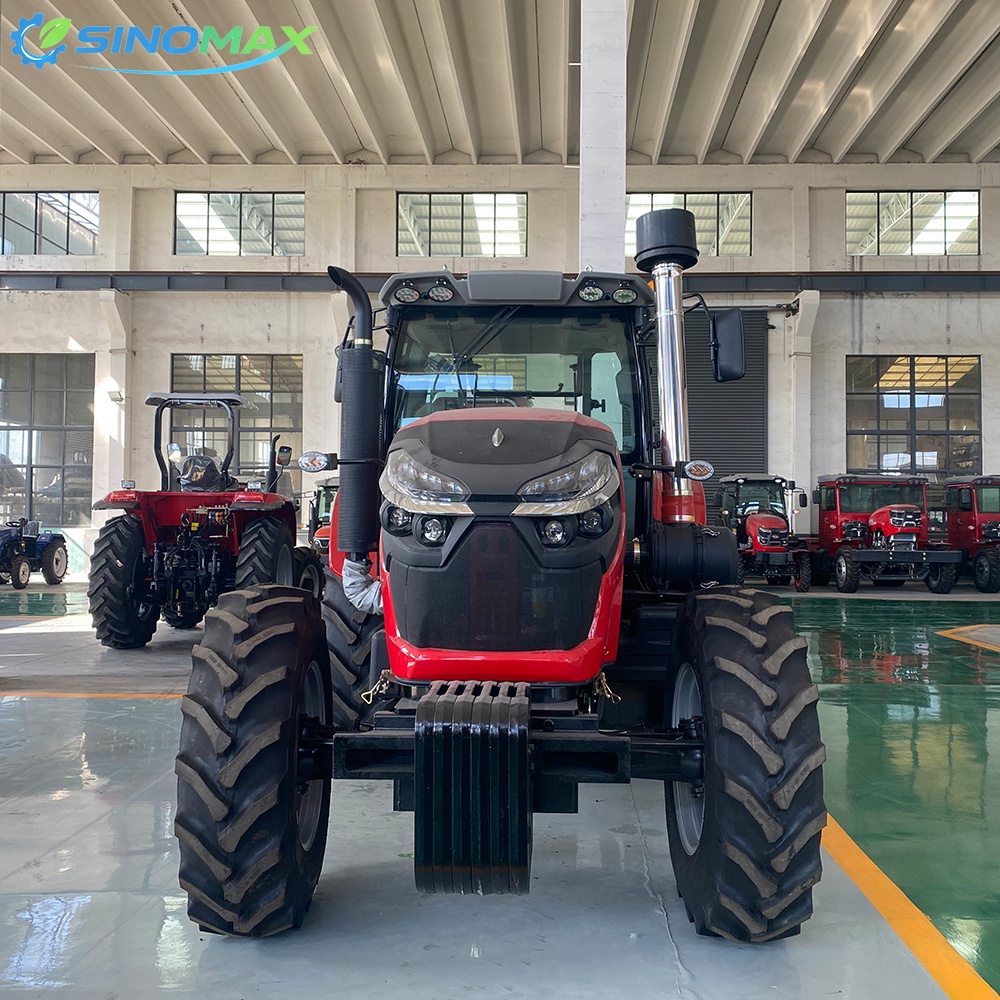

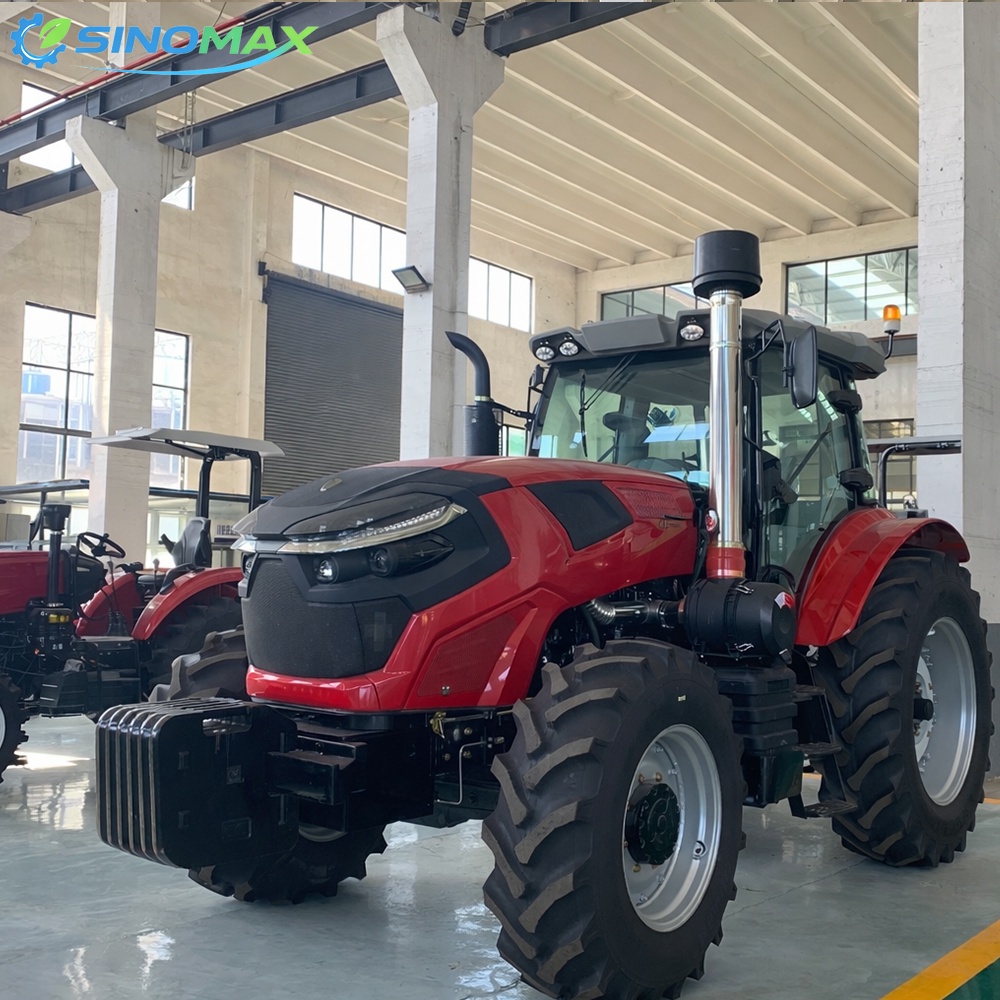

TC Chassis 200 HP Cab Tractor

· Synchronizer shifting, full helical gear transmission is used inside the gearbox, and the gearbox adopts a reinforced casing for higher reliability.
· Reinforced Transmission and Tow Bar, so this series tractor can easily tow European Model Heavy Duty trailers.
Message
Technical Specifications

TRACTOR MODEL

TC1804

TC2004

TC2204

ENGINE BRAND

WEICHAI

WEICHAI

WEICHAI

ENGINE MODEL

WP6G180

WP6G200

WP6G220

ENGINE POWER

132.5 kw

147 kw

162 kw

ENGINE RATED SPEED

2200 rpm

2200 rpm

2200 rpm

WEIGHT

7900 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

16F+8R

CLUTCH TYPE

Double Action

DRIVING SPEED

1.6-34.7 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

440 mm

STEERING TYPE

Hydraulic Power

WHEEL BASE

2690 mm

WHEEL TREAD

1800-2100 mm

DIMENSION

5320x2350x3100 mm

TIRE SIZE

14.9-26/18.4-38 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, Ⅲ Category

OPTIONAL

Air Brake System

Electric Control Hydraulic System

Front PTO and Front Suspension

Cabin Window Water Sprayer

420/85R28-520/85R38 Radial Tire



Features Description

1

2

3

4

Customization Options

5

6

7

8

9

Packaging and Shipping

10

FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
