• 12 Years of Agricultural Excellence.

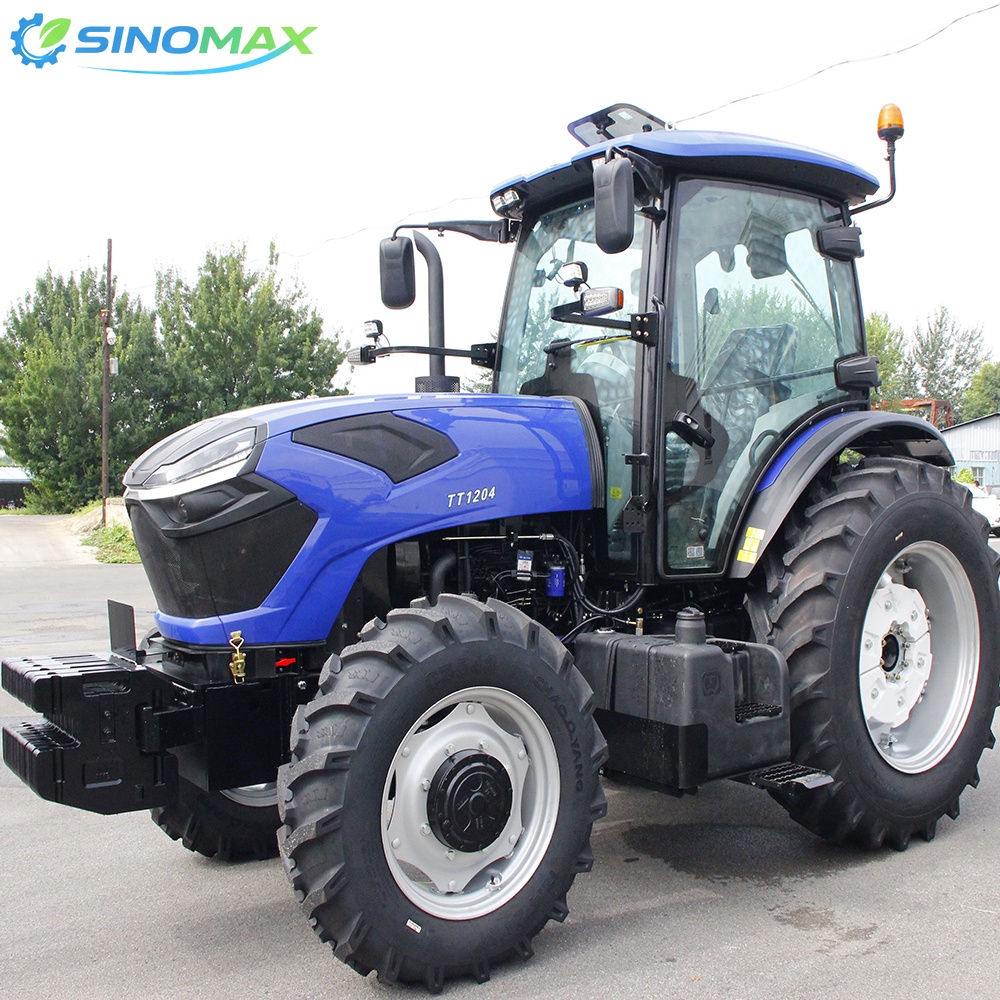

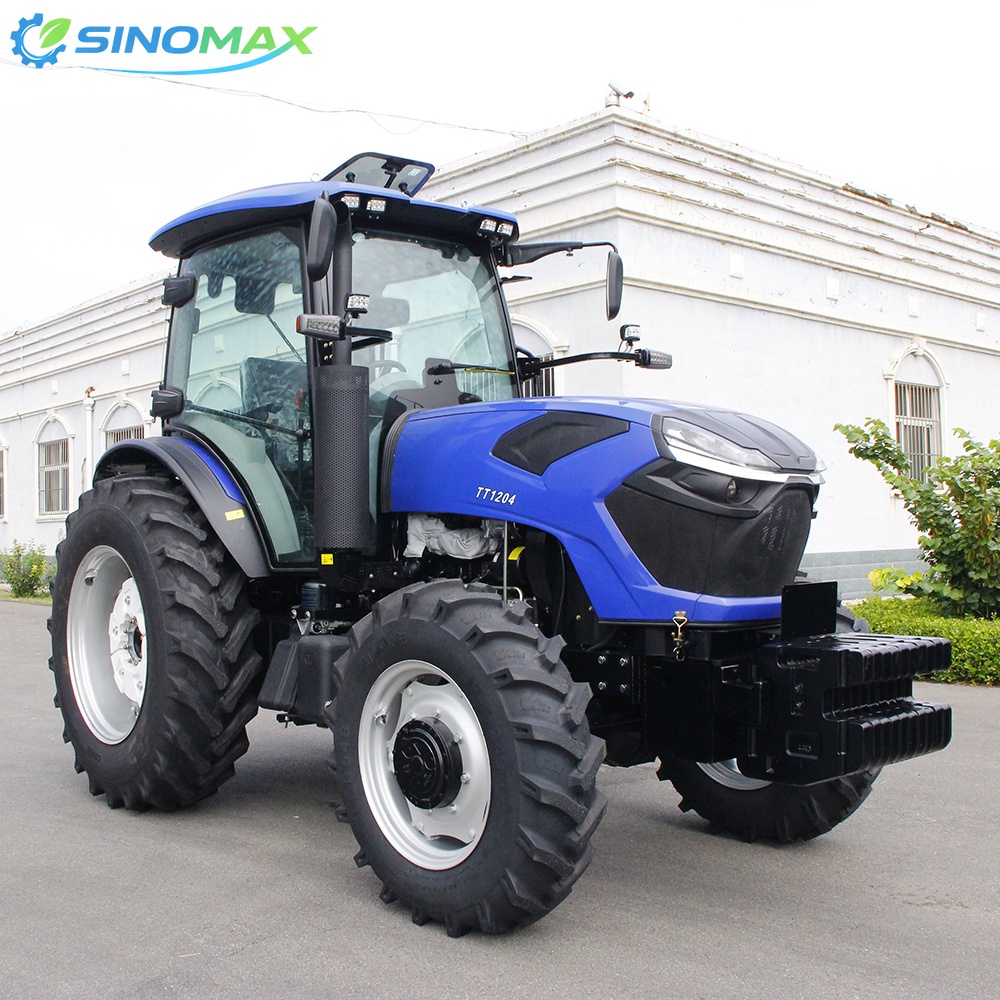

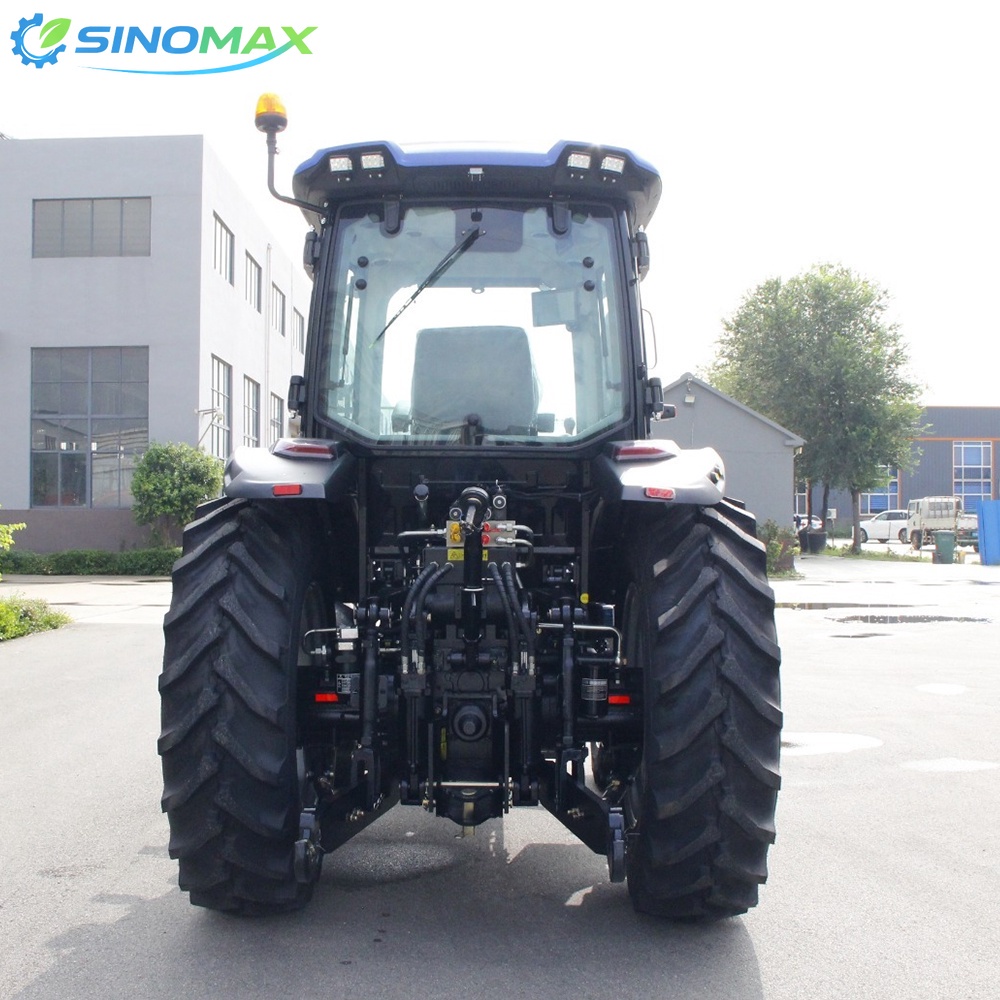

TDF Chassis 160 HP Tractor with Cab

TDF Chassis 160 HP Tractor with Cab

· Heavier, thicker, wider and longer chassis, strong traction.
· Tractor has 16F+8R Shuttle Shift and independent operation of Double Stage Clutch. So the tractor is easy operation and reliable performance.

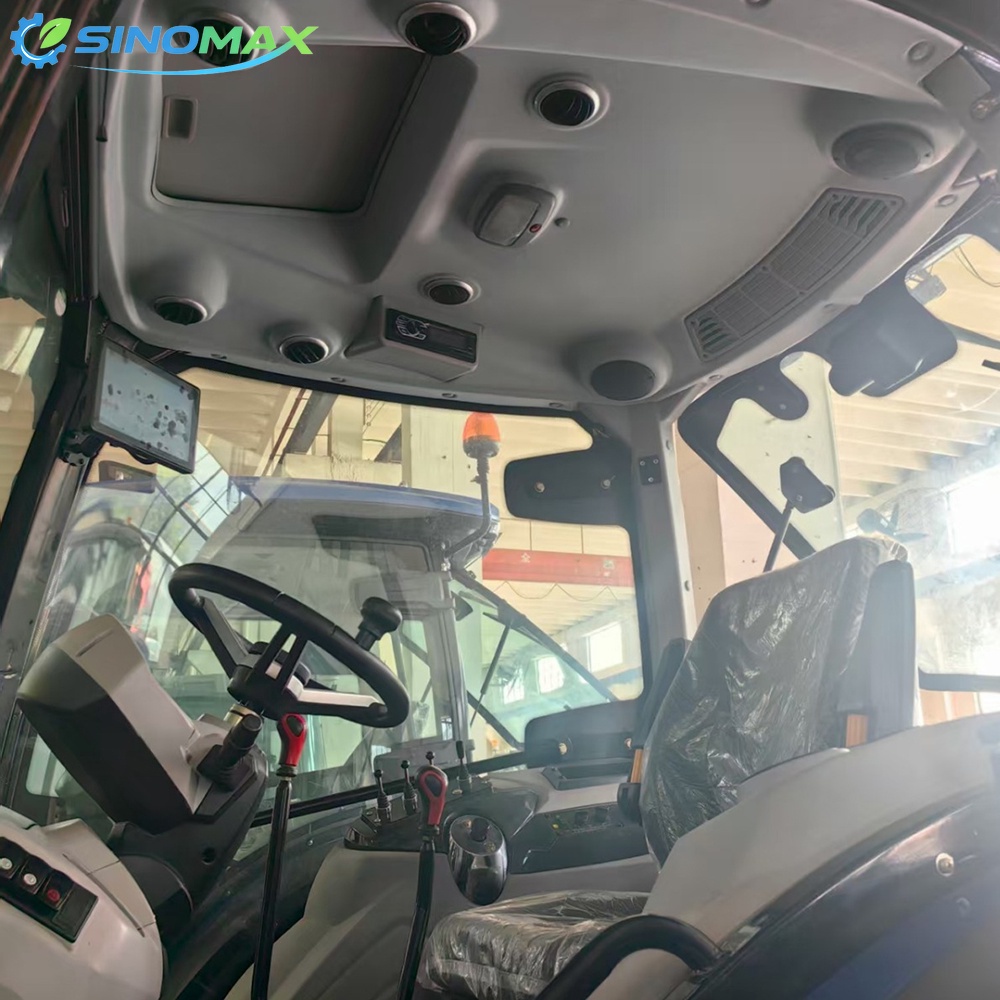

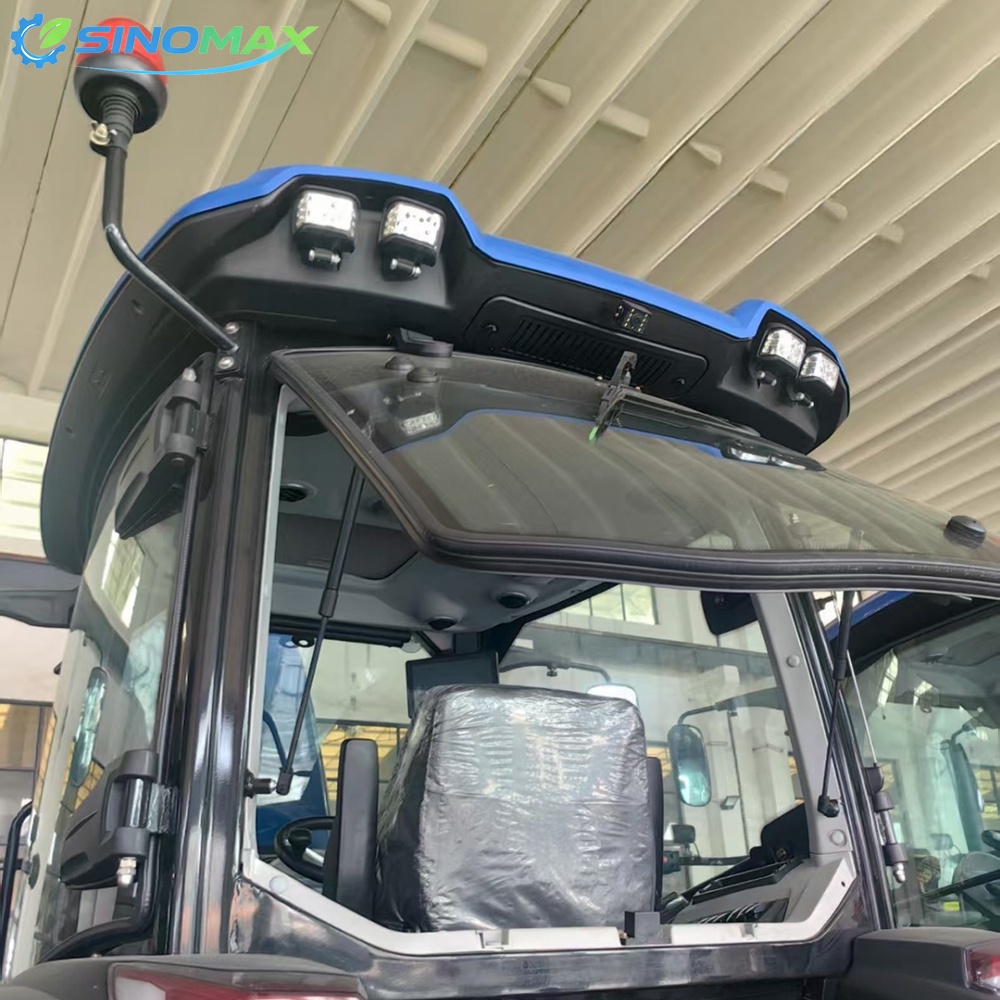

· The fully enclosed air-conditioned cabin is equipped with a sound system, and the cab has a sunroof for comfortable operation.
Message
Technical Specifications

TRACTOR MODEL

TDF1304

TDF1404

TDF1504

TDF1604

ENGINE BRAND

YTO

YTO

YTO

YTO

ENGINE MODEL

LR6M5

-T174-U2

LR6M3Z

-T146X1-U2

LR6M3Z

-T146X3-U2

LR6M3L

-T173-U2

ENGINE POWER

95.6 kw

103 kw

110.3 kw

118 kw

ENGINE RATED SPEED

2300 rpm

2300 rpm

2300 rpm

2200 rpm

WEIGHT

4900kgs

5000kgs

5100kgs

5100kgs

WHEEL DRIVE

4x4

GEAR SHIFT

16F+8R

CLUTCH TYPE

Double Action

DRIVING SPEED

1.6-34.7 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

420 mm

STEERING TYPE

Hydraulic Power

WHEEL BASE

2210 mm

WHEEL TREAD

1600-1700 mm

DIMENSION

4600x2200x2950 mm

TIRE SIZE

12.4-24/16.9-34 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, StrongerⅡ Category

OPTIONAL

Front Fender

Front & Rear Ballast

14.9-24/18.4-34 Inch Tire

Air Brake System

Swing Tow Bar

Cabin Window Water Sprayer



Features Description

1

2

3

4

Customization Options

5

6

7

8

9

Packaging and Shipping

10

FAQ
Q: What's the machine warranty time?
A:

12 months warranty after delivery, with free parts for quality issues and technical support.

Q: What is the terms of payment?
A:

30% T/T in advance, 70% T/T paid before shipping.

Q: What is the delivery time?
A:

15 to 20 days
